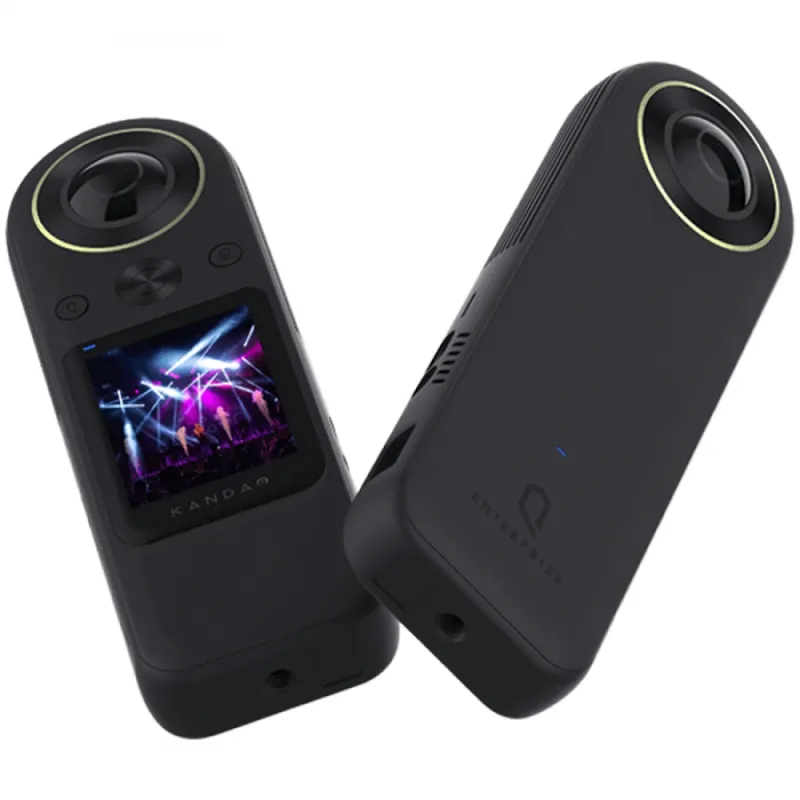

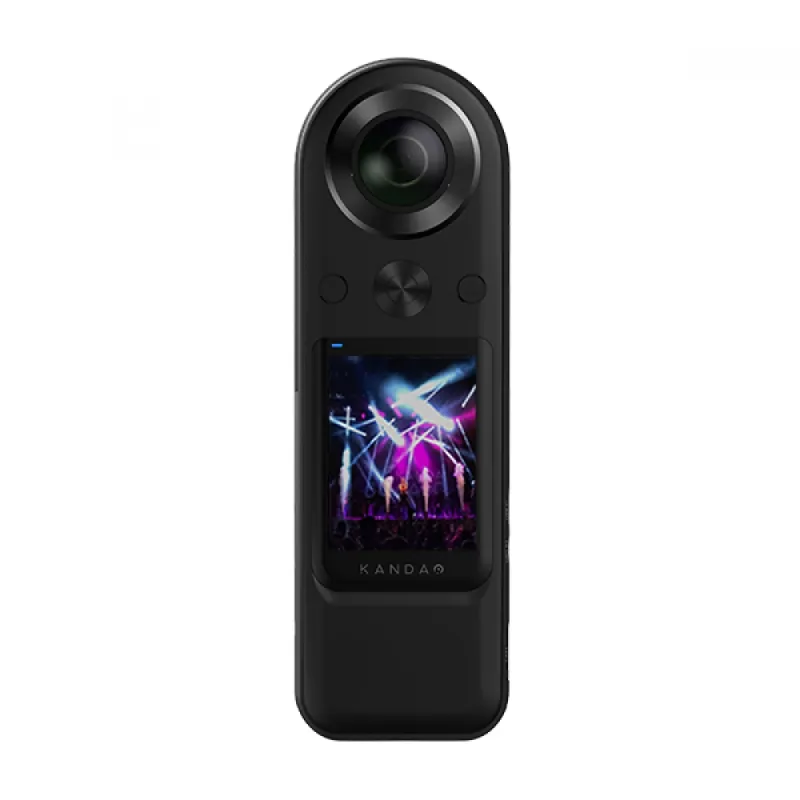

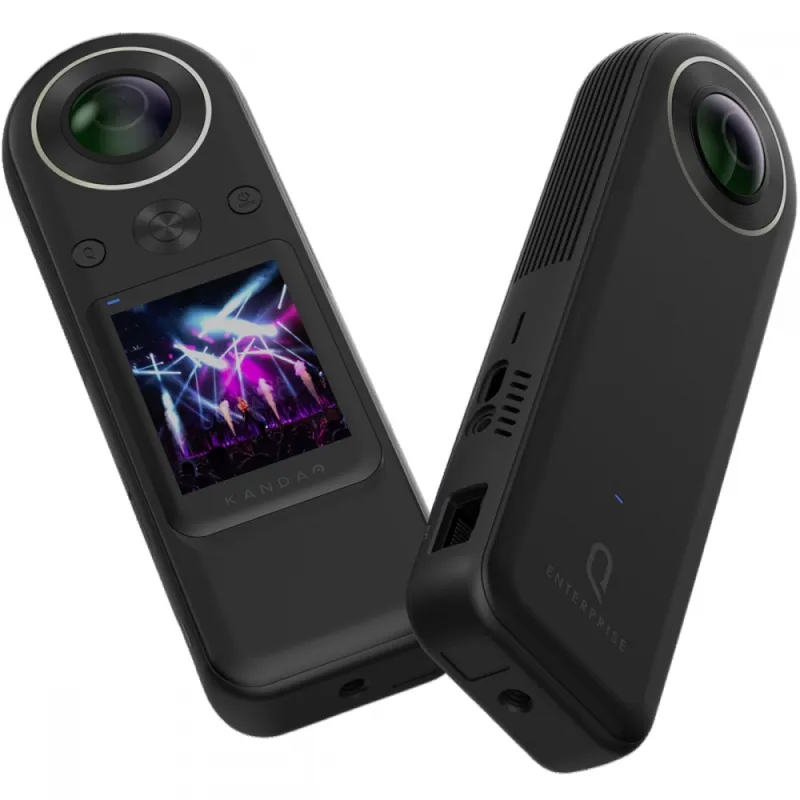

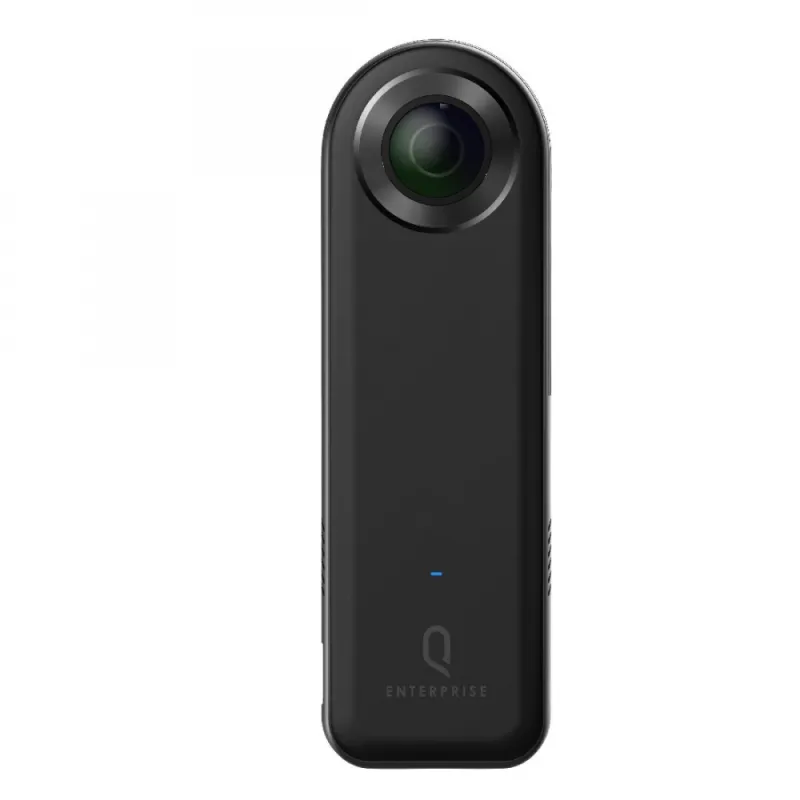

Kandao QooCam 8K Enterprise
With two 1 / 1.7" 20MP sensors, QooCam 8K Enterprise’s photosensitive area is 1.5 times that of 1 / 2.3"sensor. Its customized lenses and higher signal-to-noise ratio also contribute to clearer image with more details contained, especially in complex light situations.
Features
- 8K: 7680*3840 4K: 3840*1920
- Built-in Mic
- Built-in 3600mAh battery
- Build-in 64GB EMMC
- Support external SD card up to 256G
- cellent image with more details
- Film-level ISP adjustment for more natural and real images
- Higher dynamic range for various light conditions
- Built-in noise reduction algorithm for live streaming
- Clear image in low light
In-camera Stitching & Live Streaming, Efficient 5G 8K VR Live
5G Ethernet port allows easy connection with 5G network.
In-camera realtime live streaming, no need for an expensive PC computer.
Supporting rtmp, rtmps and rtsp
- Multiple Ways to Preview/Adjust & More Flexible
- ISO
- 0~6400
- White Balance
- Five kinds
- Encoding format
- H.265/H.264
- Bitrate
- 1~150Mbps
- Resolution
- 8K/4K
Start Streaming Automatically Once Plugged in, Easier to Remote Control
The camera will turn on and start live streaming once it is plugged in, and instantly stop when it is powered off, convenient for live streaming in scenic resorts, factories, outdoor, etc.
*When it is powered off, the live streaming will stop after the built-in battery is dead
Best Outdoor 360 Live Camera

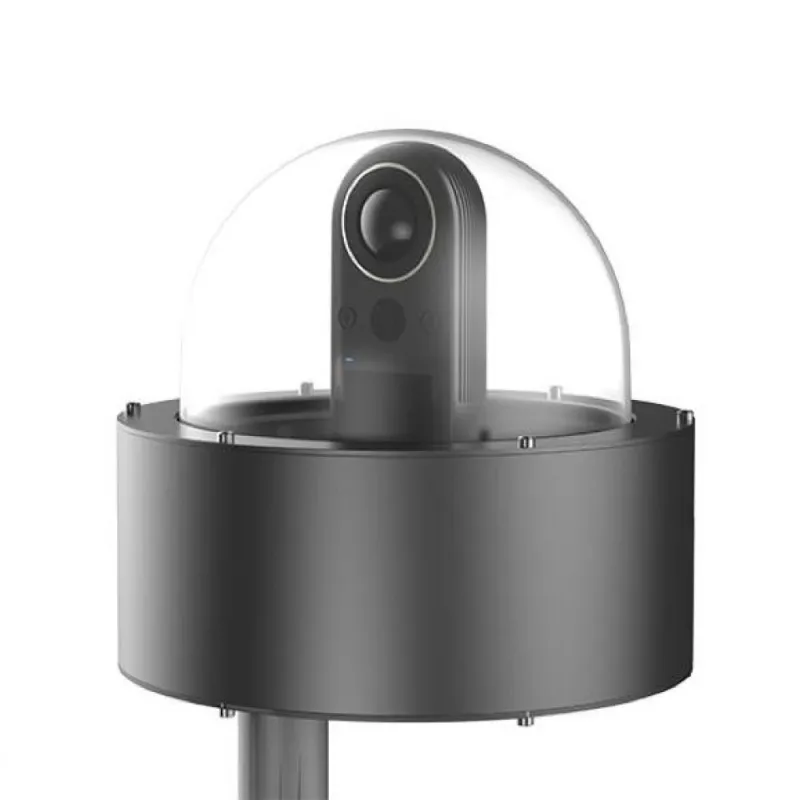

With a rainproof case, QooCam 8K Enterprise can reliably and stably transmit live streaming data for long time even if it rains outdoors.
Nadir Patch
You can put your logo or other image on the nadir, useful for displaying information.

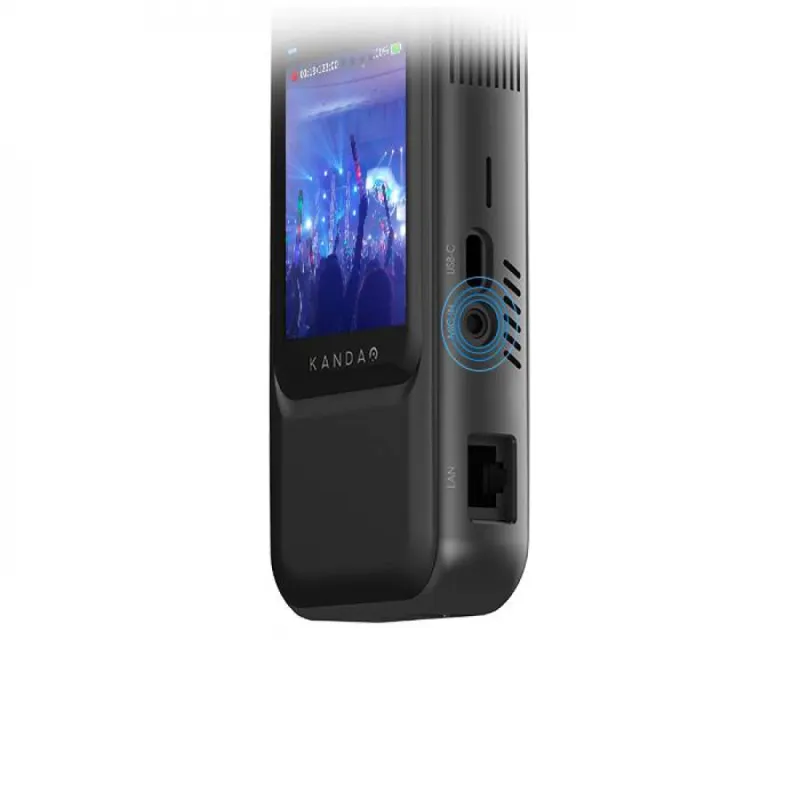

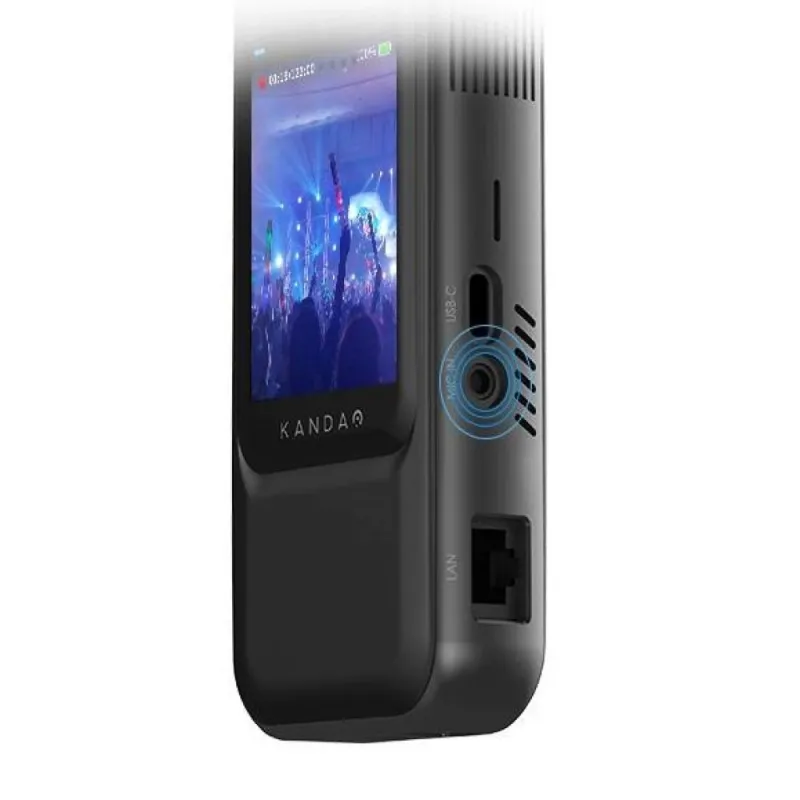

3.5mm Mic Port for Professional Audio
Professional image quality and sound quality for a more infectious and immersive live streaming experience.
12-bit Raw Pictures & 10-bit Video*
Better image quality and more flexibility in post production
10bit video provides 4 times the color depth compared to 8bit video
12bit images contain image information 16 times compared to 8bit.
*Only video recording supports these features
Technical Specifications
- Live
- Live Mode
- Cam streaming , phone streaming
- Supporting Protocol
- rts, rtmp, rtmps
- Resolution
- 8K: 7680*3840; 4K: 3840*1920
- Lens Adjustments
- Real-time automatic/manual exposure and white balance adjustments: EV, Shutter, ISO, Color temperature
- Live Preview
- Camera real-time 360 preview
- Live Bitrate
- Max 150Mb/s
- Code Format
- H.264、H.265
- Image Stitching
- Real-time stitching
- Image Stabilization
- SuperSteady
- Camera specifications
- Lens
- F2.0,FOV:200°
- Image sensor size
- 1/1.7 inch BSI-COMS 20MP
- Video (360)
- 7680*3840@30fps, 8/10bit and 3840*1920@120fps, 8/10bit
- Photo (360)
- 7680*3840, 12bit DNG(RAW),DNG8(16bit output)
- Video format
- MP 4
- Audio format
- PCM, AAC
- Photo format
- JPG, DNG
- Video bit rate
- Up to 200Mbps
- Video code
- H.264,H.265
- IMU
- 6-axis IMU
- Screen
- 2.4 inch colorful touch screen
- Photo mode
- Still image, Timed photos, DNG8, Time lapse photo
- Video mode
- Video, Slow motion, Sports mode
- Live streaming
- 8K/4K 360° Live
- EV
- -2EV ~ +2EV
- Exposure
EV (auto): -2EV ~ +2EV
Manual Mode: Photo: 1/6400s-1s DNG8: 1/6400s-1s; Video: 30fps:1/6400s-1/30s 120fps:1/6400s-1/120s ISO: 100-6400
Sports Mode: There are two choices to control the maximum shutter time: Mode 1, Mode 2.; For 50Hz, Mode 1 is 1/50s, Mode 2 is 1/100s; For 60Hz, Mode 1 is 1/60s, Mode 2 is 1/120s; Sports EV:{ -2.0EV to +2.0 EV}
- White Balance
- AWB, Fluorescent, Incandescent, Cloudy, Daylight
- Design
- Color
- Black
- Weight
- Approx. 275g
- External Dimensions
- 179mm*57mm*33mm
- Storage and Connection
- WIFI
- 2.4G/5G
- External interface
- USB Type-C,LAN
- Storage
- Internal 64GB EMMC
- SD card
- Support external TF Card (up to 256GB), U3 card is recommended
- Mic
- Build-in Mic
- LAN
- RJ45
- Line-in
- 3.5mm
- Battery
- Capacity
- 3000mAh. Approx. 90 minutes for 8K@30fps or 4K@120fps video recording. 360° Live:90 minutes.
- Charging method
- USB-PD Fast Charge with 3A or above is commended
- Usage temperature range
- -20°C – 40°C
